Automation Systems for Swing Gates: (Hydraulic)
A wide range of operations designed to respond to the multiple needs of swing gates.
BFT automation systems are suitable for any type of gate - heavy, light residential or industrial and combine maximum ease of installation with absolute reliability and total safety, in full compliance with European standards.
BFT automation systems are suitable for any type of gate - heavy, light residential or industrial and combine maximum ease of installation with absolute reliability and total safety, in full compliance with European standards.
Description
Complete range of low voltage hydraulic pistons for very intensive use, suitable for any type of residential, industrial or multi-residence application. Compact and sturdy, capable of automating swing gate leaves up to 5 metres wide and weighing up to 800 kg.

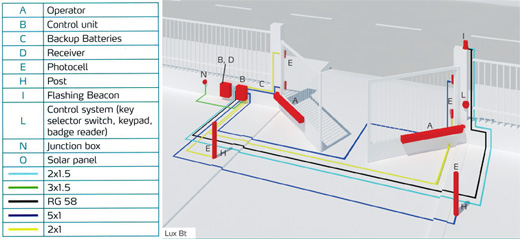

Installation Guide

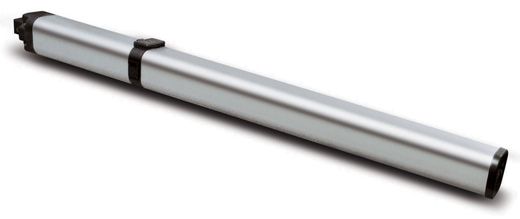

LUX BT
Technical Features
- Control unit Power supply THALIA P
- Power input 24V
- Useful rod stroke 270mm
- Maximum angle 113O
- Cycle time 14sec.
- Slowdown Yes
- Impact reaction D-Track Selectable in opening/closing
- Locking Triangle key
- Release Very intensive
- Frequency of use from - 20OC to OoC
- Environmental conditions Ip55
- Protection rating 8.4kg
- Actuator weight
Description
Low voltage hydraulic operator for very intensive use, suitable for any type of residential, industrial or multi-residence application.
Compact and sturdy, capable of automating swing gate leaves up to 2.5 metres wide and weighing up to 800 kg.
SUB BT
Technical Features
- Control unit THALIA P
- Power supply230V
- Power input 280W
- Maximum angle 12OO
- Cycle time 28sec.
- Slowdown No
- Impact reaction Electric clutch
- Locking Mechanical
- Release Lever or level with personalised key
- Frequency of usefrom - 20OC to OoC
- Environmental conditions Ip67
- Protection rating 10kg
- Actuator weight
Multi Channel Remote Control:
Beside normal operation, you are able to control the lighting. For the swing type system, semi-opening for pedestrian is possible.
Quality:
The DC24 Volts electric motor is special designed dedicated to the toughest application environments.
Ball bearing are used instead of commonly used bush bearing to ensure everlasting trouble free operation.
Long life carbon brush eliminates frequent service to the motor as happened in other similar products.
Waterproof:
Being housed inside a waterproof chassis, the mechanism are protected against floods and corrosion.
